Retaining Wall Ideas for Kansas City Yards

Practical advice for Kansas City homeowners comparing concrete contractors.

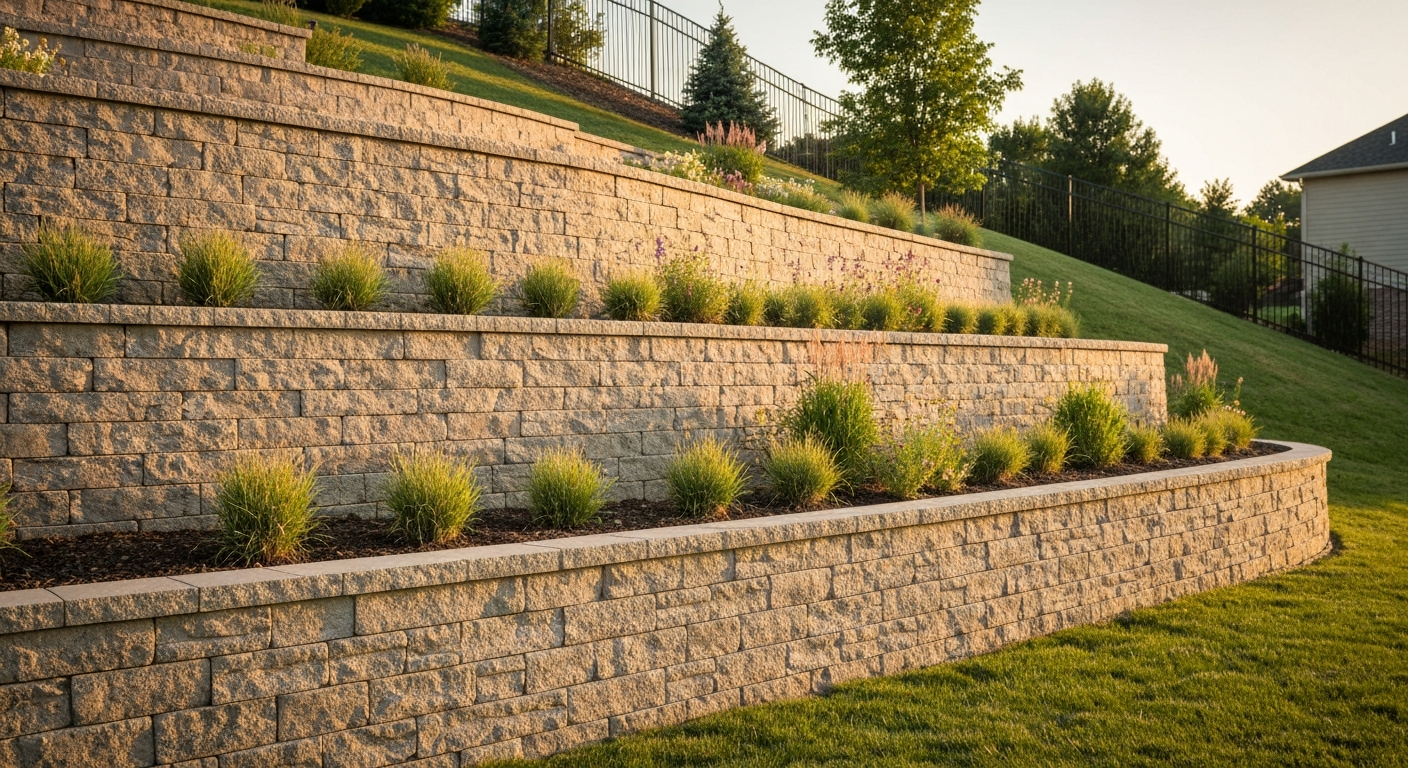

Segmental concrete retaining wall of the kind this ideas guide covers

Updated November 19, 2026.

Retaining walls serve both functional and aesthetic purposes for Kansas City properties. Whether you're dealing with a sloped yard or want to create terraced garden beds, concrete retaining walls are a durable long-term solution.

The best idea for your yard starts with one number: how tall the wall has to be. Height decides the material, whether you need an engineer, and whether the city needs a permit. Here are ideas organized by the situation you're actually in.

First, the height line that changes everything

Several metro cities exempt short walls from a building permit and regulate taller ones:

  • Olathe: retaining walls not over 4 feet, measured from the bottom of the footing to the top of the wall, are exempt from a building permit unless they support a surcharge or impound Class I, II or IIIA liquids (Olathe Municipal Code 15.02.140). A surcharge is extra load above the wall, like a driveway, a parked car or a slope.
  • Overland Park: Ordinance BC-3286 amends the building-code exemption for retaining walls not over 4 feet, measured from the bottom of the footing grade on the low side to the top of the wall, unless supporting a surcharge or impounding Class I, II, III-A liquids. That is not the same measuring point as Olathe's bottom of the footing. Confirm the current text with Overland Park Building Safety for your address.
  • Two practical consequences:

    1. In Olathe, four feet includes the buried footing. A wall that looks shorter above grade can still cross the line once the footing is counted. Overland Park's exemption uses the footing grade on the low side, so do not assume the two cities measure the same way.
    2. Two short walls can beat one tall one. Terracing, below, is the most common way homeowners keep each wall under the permit line. Whether two walls count as one depends on their spacing and the slope between them, so ask the contractor or city before assuming.

    Idea 1: Terraced beds for a sloped backyard

    Break a steep backyard into two or three level steps with short walls and planting or lawn between them. It gives you usable flat space (a patio pad, a play area, a garden) instead of one tall wall at the bottom.

  • Best materials: segmental retaining wall (SRW) block or poured concrete for each tier.
  • KC constraint: each tier needs its own drainage path. Water from the upper tier has to get out, not pile up behind the lower wall.
  • Pair with: a concrete patio on the lowest level. Patio prices: Concrete Patio Cost in Kansas City.
  • Idea 2: Low wall plus patio, a sitting wall

    Instead of a freestanding bench, build a low wall along the uphill edge of a patio. It holds back the slope and doubles as seating.

  • Best materials: cap-finished block, or poured concrete that matches the patio.
  • KC constraint: the patio has to slope away from both the house and the wall base, or water collects at the joint.
  • Idea 3: A wall along the driveway

    Common where a driveway was cut into a slope, or where the yard drops off beside the drive.

  • KC constraint: a wall next to a driveway is often supporting a surcharge (cars). In Olathe that removes the under-4-feet exemption (15.02.140), so expect a permit and possibly engineering even for a modest wall. Ask before choosing a design.
  • Pair with: driveway replacement if the slab is failing. Rebuild both in one mobilization.
  • Idea 4: Sloped front yard, curb appeal and a level walk

    A low wall or two near the sidewalk can create a flat strip for planting and a level path to the door.

  • KC constraint: check where the public right-of-way starts. In Olathe it typically begins about 11 feet from the back of the curb (City of Olathe, Right-of-Way), and work there needs a city permit. Keep the wall on your side of the line unless the city approves otherwise.
  • Pair with: sidewalks and walkways and steps.
  • Idea 5: On a budget

  • Lower the wall, widen the slope. Grading a gentler slope with plantings above a short wall costs less than one tall engineered wall.
  • Use SRW block for walls under the permit line. Our contractor guide lists SRW systems as the most cost-competitive option for residential walls under 4 feet. See Retaining Wall Contractors in Kansas City.
  • Don't save money on drainage. It's the cheapest part of a wall and the most common reason walls fail.
  • Materials at a glance

    KC homeowners typically choose from poured concrete walls, concrete block walls, and segmental retaining wall systems. Each has advantages depending on wall height and soil conditions.

    MaterialWhere it fitsWatch for
    Segmental (SRW) blockLandscape walls and terraces, curvesBase leveling pad and setback per manufacturer
    Poured concreteClean modern look, matching a patio or drive, taller walls with engineeringFormwork, reinforcement and drain detail
    Concrete block (CMU)Taller structural walls, often with a veneerReinforcement and grouting by design
    Natural stone or bouldersInformal, garden lookStone size vs height. Ask how it's drained

    Drainage on Kansas City clay

    Clay soil holds water, and water behind a wall pushes on it. Every wall idea above needs the same three things in the quote:

    1. Free-draining gravel behind the wall instead of clay backfill
    2. A drain (typically a perforated pipe) at the base with an outlet, so water leaves the wall zone
    3. Surface water routed away, meaning downspouts and slopes that don't dump onto the top of the wall

    If a quote doesn't show a drainage detail, ask for one in writing.

    Cost

    Retaining walls in Kansas City range from $25-$50 per square face foot installed. A 4-foot-tall, 20-foot-long wall costs approximately $2,000-$4,000. Material-by-material ranges and engineering fees are on our retaining wall contractor guide.

    Retaining walls by city

    Olathe · Overland Park · Lenexa · Lee's Summit · Independence · All retaining wall services

    Planning a wall? Send us the height, length and what it's holding back, and we'll match you with a vetted local contractor for a free quote. Get a free quote

    Frequently Asked Questions

    What is the cheapest retaining wall idea for a sloped backyard?

    Usually short walls with regraded slopes between them, built from segmental block under the local permit height, rather than one tall engineered wall. Drainage still has to be included.

    How tall can a retaining wall be without a permit in Olathe?

    Olathe exempts walls not over 4 feet from the bottom of the footing to the top of the wall, unless the wall supports a surcharge such as a driveway (Municipal Code 15.02.140).

    Can I put a retaining wall next to my driveway?

    Yes, but a wall holding up a driveway is supporting a surcharge, which can require a permit and engineering even under 4 feet. Ask the contractor to confirm with your city.

    Sources

  • Olathe Municipal Code 15.02.140: https://olathe.municipal.codes/Code/15.02.140. Checked November 19, 2026. The exemption also excludes walls that impound Class I, II or IIIA liquids.
  • Overland Park Ordinance BC-3286, section 16.100.105.2 (IBC 105.2 as amended): https://opkansas.civicweb.net/document/14401/. Checked November 19, 2026. The 4-foot exemption is measured from the bottom of the footing grade on the low side, not from the bottom of the footing.
  • City of Olathe, Right-of-Way (the public right-of-way typically starts approximately 11 ft from the back of the curb): https://www.olatheks.gov/government/public-works/development-resources/right-of-way. Checked November 19, 2026.
