Foundation Repair in Kansas City: Costs, Warning Signs & What to Do

Kansas City has a foundation problem epidemic — and it's not a secret. Homes in Brookside, Midtown, Waldo, and the older subdivisions of Olathe and Overland Park were built on expansive clay soil that behaves like a sponge. When it's wet, it swells. When it dries out — which happens fast during KC's summer heat snaps — it shrinks and pulls away from the foundation. Layer on top of that our notorious freeze-thaw cycles: moisture in the ground expands by nearly 10% when it freezes, creating hydraulic pressure that can crack and bow even well-built foundation walls over time. The result is that foundation repair isn't a question of "if" for many KC homeowners — it's a question of when, and how much. The good news is that most foundation problems in the Kansas City metro are repairable without a full rebuild, and catching them early makes a significant difference in cost.

Warning Signs: What to Watch For — and What's Urgent

Not all foundation cracks are created equal. Knowing the difference between "monitor this" and "call someone today" can save you thousands of dollars.

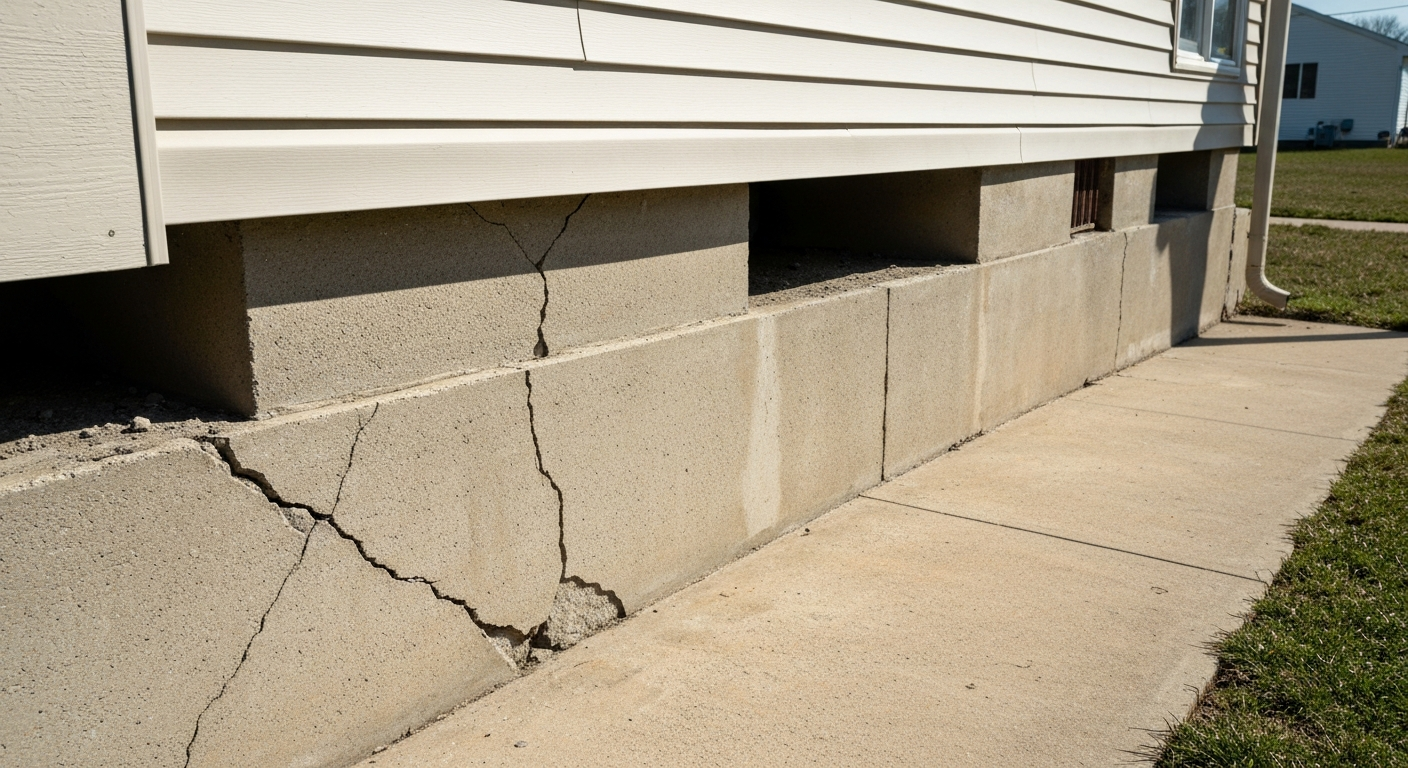

The most urgent signs require an immediate call to a professional: horizontal cracks in basement or crawl space walls are the most serious — they indicate lateral soil pressure pushing inward, a structural failure mode that can lead to wall collapse. Bowing or bulging walls, even without visible cracks, signal the same type of inward pressure. Stair-step cracks following mortar joints in brick or block foundations suggest differential settling — the foundation is moving unevenly under load. Active water intrusion through wall cracks (not floor-to-wall joints) suggests significant pressure or structural compromise and shouldn't wait.

Signs that can be monitored but documented carefully: hairline vertical cracks less than 1/8 inch wide are common as concrete cures and shrinks — mark them with a pencil and date to see if they grow over the next 30-60 days. Sticking doors and windows in older Midtown or Brookside bungalows may simply be seasonal humidity causing wood to swell. Diagonal cracks from window or door corners are worth photographing, but isolated examples in otherwise solid walls may be shrinkage cracks rather than structural movement. When in doubt, get a professional assessment — most KC foundation contractors offer free inspections.

Foundation Repair Methods Used in Kansas City

KC contractors use several repair techniques depending on the problem type, foundation age, and soil conditions. Understanding what each method does helps you evaluate whether a contractor's recommendation makes sense for your situation.

Epoxy injection is best for inactive, non-structural cracks in poured concrete foundations. A low-viscosity epoxy resin is injected under pressure to fill and seal the crack, restoring tensile strength and stopping water infiltration. Most effective on cracks less than 1/4 inch wide that have stopped moving — common in Olathe and OP homes from the 1980s and 90s with poured concrete walls.

Carbon fiber straps are the go-to fix for bowing walls that haven't moved more than 2 inches inward. High-strength carbon fiber straps are bonded vertically to the wall with structural epoxy, anchored to the floor and rim joist. They halt further movement without requiring excavation — minimally invasive and typically installed in a single day.

Helical piers are screw-like steel shafts driven deep into stable soil below KC's frost line and the expansive clay layer. They're used to stabilize and potentially lift settled or sinking foundations — common in older Midtown and Waldo homes where soil has consolidated under the original footings over 60-80 years.

Push piers serve a similar function to helical piers but are hydraulically driven straight down using the structure's own weight as resistance. Preferred for heavier foundation loads and deeper unstable soil profiles.

Wall anchors use a steel plate attached to the interior wall, connected by a rod to an anchor plate buried in the yard. Unlike carbon fiber, wall anchors can be periodically tightened over time to gradually straighten a bowing wall — an advantage when soil conditions are still active.

Foundation Repair Costs in Kansas City (2026)

Repair costs vary significantly based on method, severity, and how many locations or piers are needed. Here's what KC homeowners realistically spend:

Epoxy injection repairs run $2,000–$4,500 for 3-5 crack locations. Simple and effective, this is among the most affordable interventions when problems are caught early — one of the best arguments for annual basement inspections.

Carbon fiber strap systems cost $3,000–$7,500 depending on wall length and number of straps. Most standard basement walls need 3-5 straps to stabilize a bowing section.

Helical or push pier systems range from $8,000–$25,000 or more depending on depth required and number of piers needed. Most residential projects in the KC metro require 4-12 piers. These are significant investments, but they come with long warranties and can restore home value that settling had eroded.

Wall anchor installations typically run $4,000–$8,000, with the advantage that they can be tightened over subsequent years as part of a long-term remediation plan.

Interior drainage systems and sump pump installations (when water management is the primary issue) cost $3,000–$7,000 for a full perimeter drainage channel with a new or upgraded sump.

Exterior grading and drainage corrections cost $500–$2,500 and are often the most cost-effective first step when poor water management is driving the problem. Always get 2-3 written quotes — prices in Kansas City vary meaningfully between foundation contractors, and the lowest bid isn't always the right call.

Foundation Repair vs. Waterproofing: Not the Same Thing

This distinction trips up KC homeowners constantly — and some less-scrupulous contractors exploit the confusion. Foundation repair addresses structural problems: cracks, bowing, settling, and wall movement. Waterproofing manages water intrusion: keeping moisture out of the basement regardless of whether the structure itself is compromised.

If you have a bowing wall, no amount of waterproofing fixes the structural problem — you're just covering it up. Conversely, if you have an otherwise solid wall but water seeping in through the floor-to-wall joint during heavy spring rains, you likely need an interior drainage system, not piers.

Many KC homes need both — the expansive clay soil creates structural stress AND traps water against the foundation simultaneously. But the solutions are distinct, and a reputable contractor will diagnose which problem (or combination) you have before making recommendations. You shouldn't be sold a $15,000 waterproofing system when the actual problem is a bowing wall that needs carbon fiber straps.

A telling red flag: a contractor who recommends interior waterproofing as a primary solution to cracks or bowing. Waterproofing is a moisture management tool, not a structural fix. Any contractor who can't clearly explain the difference between the two — or who conflates them in their pitch — should be disqualified from the project.

How to Choose a Foundation Contractor in Kansas City

Foundation work is specialized, expensive, and permanent — this isn't the place to go with the cheapest bid or the flyer left on your door.

Verify credentials before anything else. Missouri contractors need a state contractor's license; Kansas requires contractor registration through the Kansas Department of Labor. Ask for the license number and verify it online — both states maintain searchable databases. Confirm they carry general liability insurance (minimum $1M) and workers' compensation coverage, and get the certificate directly from the insurer rather than a photocopy the contractor hands you.

Ask these questions before signing any contract: How long have you operated in the Kansas City market — look for a minimum of 5 years with local references. What warranty do you offer, and is it transferable to future buyers? A transferable warranty is meaningful at resale — buyers and their inspectors will ask about any foundation work. Will you pull required permits for this project? Unpermitted structural work creates complications when you sell. Do you subcontract any portion of the installation, or is your own crew doing the work?

Red flags to walk away from: high-pressure tactics or same-day-only pricing; vague scopes of work with lump-sum totals and no line-item breakdown; requests for more than 10-20% upfront before work begins; no physical KC-area business address; and any contractor who recommends the most expensive solution without walking you through why alternatives won't work for your situation.

Get a Free Foundation Inspection in Kansas City

Most reputable foundation contractors in the Kansas City area offer free inspections — there's no reason to guess about what you're dealing with when a professional assessment costs you nothing. If you've noticed any of the warning signs above — horizontal cracks, bowing walls, stair-step brick cracks, sticking doors — the smartest move is to get eyes on it before the problem progresses. Our network of vetted KC-area foundation and concrete contractors can diagnose your situation and provide a written estimate at no cost. Fill out our quick quote form and we'll connect you with a licensed, insured foundation specialist who works in your neighborhood — whether you're in Brookside, Midtown, Olathe, Overland Park, or anywhere across the KC metro.
